| Status | In Stock |
| Product Code | |
| Brand | CANON |

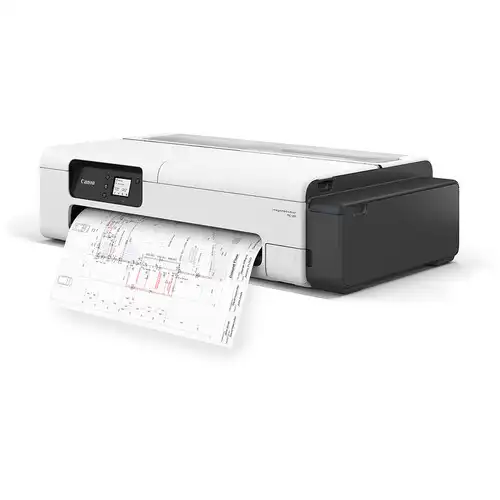

Canon imagePROGRAF TC‑20
A compact 24″ single-function large-format printer, the TC‑20 delivers professional-quality prints for CAD drawings, posters, flyers, and signage. Equipped with 4‑color pigment ink and 2400 × 1200 dpi resolution, it produces sharp, smudge‑resistant output. It supports both roll-fed and cut-sheet media via a built-in Auto Sheet Feeder and rollover system, offering seamless switching for efficient production. With Wi‑Fi, USB, and Ethernet connectivity, smart ink handling, and a space-saving desktop design, it’s ideal for small offices, studios, and educational environments
Function: Print Only (Single‑function large‑format printer)
Output: Full‑color (Black, Cyan, Magenta, Yellow pigment inks)
Ink Bottles: 4 × 70 ml pigment ink (starter set included); recyclable bottles with low total cost of ownership
Print Technology: Canon pigment FINE inkjet (one print head with 4 chips; 4,352 nozzles total)
Black: 1,280 nozzles; Cyan, Magenta, Yellow: 1,024 nozzles each
Maximum Resolution: 2,400 × 1,200 dpi
Nozzle Pitch: 1,200 dpi × 2 lines
Line Accuracy: ± 0.1% or less (with proper adjustments)
Print Speed (Monochrome CAD/A1 Draft mode): Approx. 32 sec per page
Media Types Supported:
Roll Paper: Top-loading, shaftless roll support (12–24 inches wide; up to 4 m length)
Cut Sheet: Front-loading auto sheet feeder (A4–A3 sizes)
Cut Sheet Capacity: Up to 100 × A4 sheets or 50 × A3 sheets
Media Width:
Roll: 297–610 mm (A3 to 24")
Cut: 210–297 mm (A4–A3)
Media Thickness: 0.08–0.28 mm
Memory: 1 GB RAM for smooth file processing
Interfaces:
Hi-Speed USB-B (USB 2.0)
Ethernet (IEEE 802.3/802.3u)
Wireless LAN: 802.11b/g/n with WPA/WPA2/WPA3 security protocols
Supported OS:
Windows: 7, 8.1, 10, 11; Windows Server editions (2008 R2 through 2022)
macOS: 10.14.6 through 12.x
Printer Language: SG Raster (Swift Graphic Raster)
Software Solutions: Canon PRINT Inkjet/SELPHY (iOS/Android), PosterArtist, Direct Print Plus, Free Layout Plus, PIXMA Cloud Link, AirPrint, Mopria, ChromeOS compatibility
Power Supply: AC 100–240 V, 50/60 Hz
Power Consumption:
Printing: ≤ 28 W
Sleep Mode: ≤ 1.8 W
Powered Off: ≤ 0.3 W
Noise Level: Operating ≈ 42.5 dB(A); Standby ≤ 35 dB(A) (ISO 7779 standard)
Operating Conditions: Temperature: 15–30 °C; Humidity: 10–80% RH (no condensation)
Footprint:
ASF closed: 968 × 525 × 245 mm
ASF opened: 968 × 545 × 395 mm
Weight:
Main unit: approx. 32 kg (without ink bottles)
With Stand + Basket: approx. 40 kg
Ink Tanks: PFI‑050 refill bottles (70 ml each for BK/C/M/Y)
Print Head: PF‑08 (user-replaceable)
Maintenance Cartridge: MC‑32 (user-replaceable)
| Feature | Specification |
|---|---|
| Media width and type | 12–24 in roll or A4–A3 cut sheets |
| Resolution | 2400 × 1200 dpi |
| Nozzle count | 4352 total (1,280 BK, 1,024 C/M/Y) |
| Speed (CAD A1 draft) | ~32 sec per A1 draft page |
| Connectivity | USB, Ethernet, Wi‑Fi (b/g/n) |
| Memory | 1 GB RAM |
| Power draw | ≤ 28 W (print), ≤ 1.8 W (sleep) |
| Dimensions (closed ASF) | 968 × 525 × 245 mm |
| Weight | ~32 kg (core unit) |
| Consumables | 70 ml pigment ink bottles; PF‑08 head; MC‑32 maintenance cartridge |
The Canon imagePROGRAF TC-20 is a 24-inch desktop printer featuring an automated sheet feeding and a roll feed. It has four pigment ink bottles and is suitable for producing large, colorful flyers and posters for advertising, signs, announcements, CAD drawings, and technical documentation. It has a print resolution of 2400 x 1200 dpi and employs precise FINE technology (Photolithography Inkjet Nozzle Engineering) to produce crisp prints. You receive free access to the web-based, template-driven PosterArtist tool for designing posters and flyers. The TC-20 has built-in Wi-Fi, USB, and Ethernet connectors for communication. Wi-Fi enables you to print from nearly any location in the office. For speedier printing, the automated sheet feeder can accommodate up to 100 sheets of 8.5 x 11" letter-sized plain paper or 50 sheets of 11 x 17" paper. The roll feed accommodates rolls ranging in width from 12 to 24 inches. The four-color pigment ink technology produces sharp text and bright images while also resisting highlighter and water. The ink bottles are keyed to only fit and fill the appropriate color ink tank. This design contributes to a spill-free procedure that makes re-filling simple.
